The Ultimate Guide to Building and Wiring a Solar Battery Bank

When it comes to building a reliable solar power system, properly wiring your battery bank is non-negotiable. Whether you’re powering a home, RV, or off-grid cabin, how your batteries are wired affects voltage and capacity in Amp-Hours (AH). It also impacts safety and performance.

In this post, you’ll learn:

✅ The difference between series, parallel, and series-parallel battery wiring

✅ How to safely connect batteries

✅ Wiring diagrams and tips for beginners

✅ Common mistakes to avoid

🔌 Why Do You Need to Wire Batteries Together?

A single battery often isn’t enough to store the energy your solar panels generate or supply the daily energy needed to power your loads. So, we connect multiple batteries to form a battery bank that can store more energy or work at higher voltages — or both.

Depending on your setup, you can:

• Increase voltage (e.g. from 12V to 24V or 48V) – Series connection
• Increase amp-hour capacity (for longer runtime) – Parallel connection
• Or both with a series-parallel configuration

Let’s break these down.

🔗 Series Connection – For Higher Voltage

In a series connection, you connect the positive terminal of one battery to the negative terminal of the next.

What it does:

• Increases total voltage
• Keeps amp-hour (Ah) capacity the same

Example:

Four 12V 220Ah batteries in series = 48V 220Ah total
✅ Ideal for 48V inverters and reducing cable size

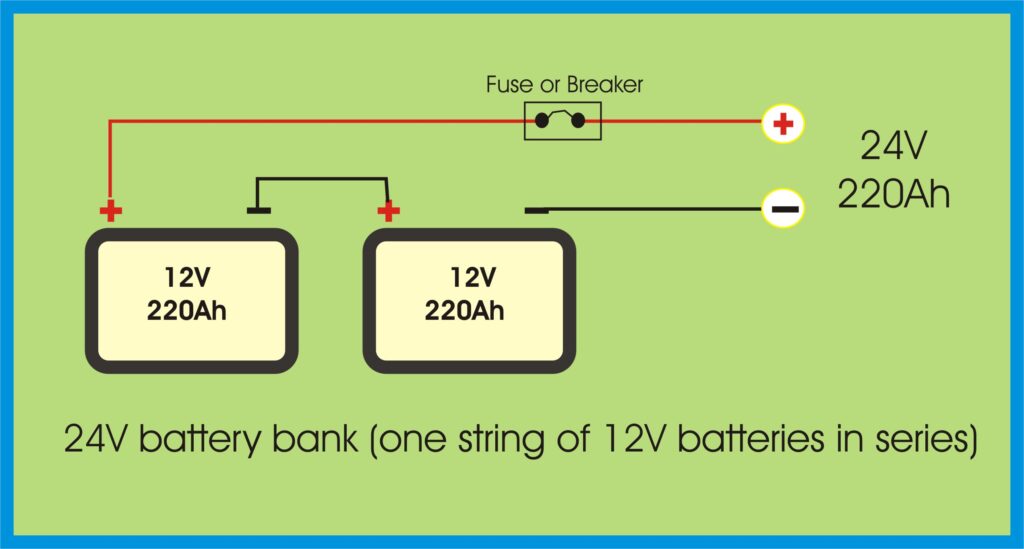

Wiring Diagram:

🔀 Parallel Connection – For More Capacity

In a parallel connection, you connect all positive terminals together and all negative terminals together.

What it does:

• Keeps voltage the same
• Increases total amp-hour (Ah) capacity

Example:

Two 12V 220Ah batteries in parallel = 12V 440Ah total
✅ Ideal for systems where low voltage but high capacity is needed

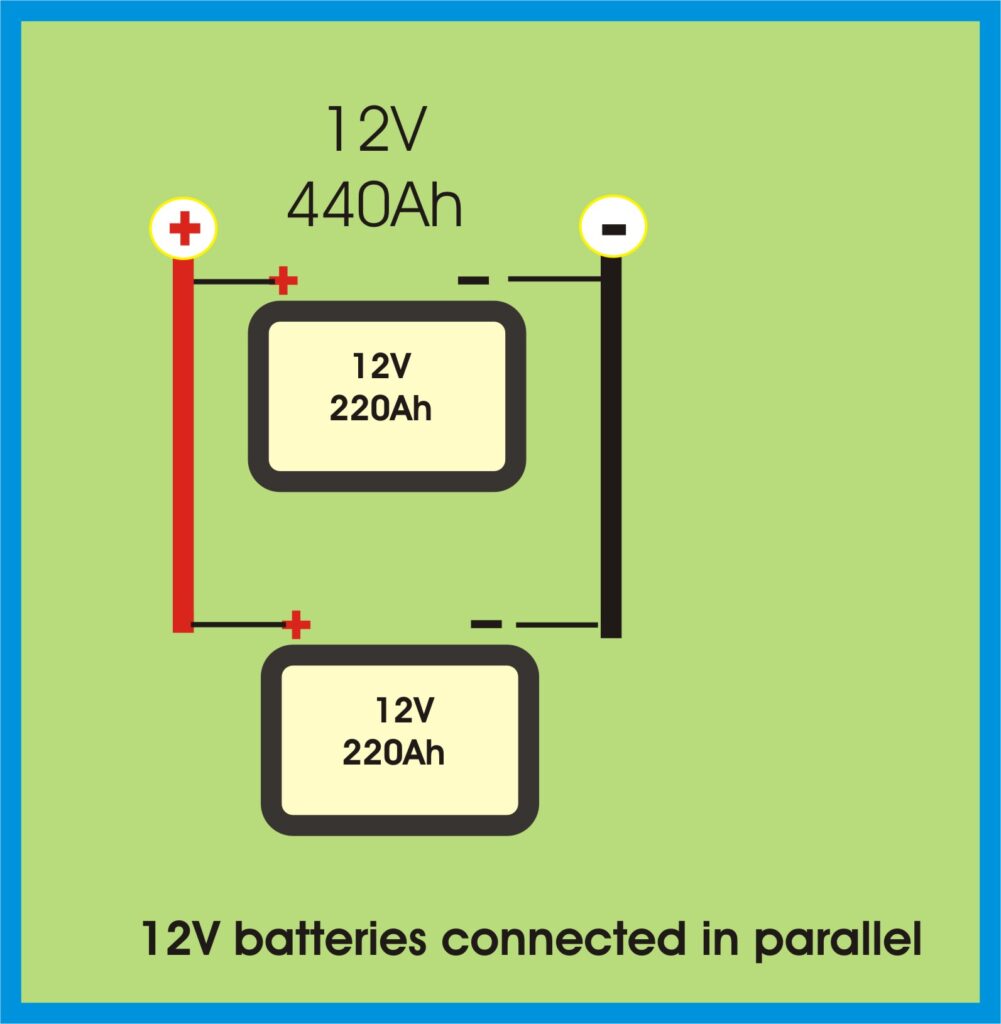

Wiring Diagram:

🔁 Series-Parallel – Best of Both Worlds

Need more voltage and more capacity? You can wire batteries in series-parallel.

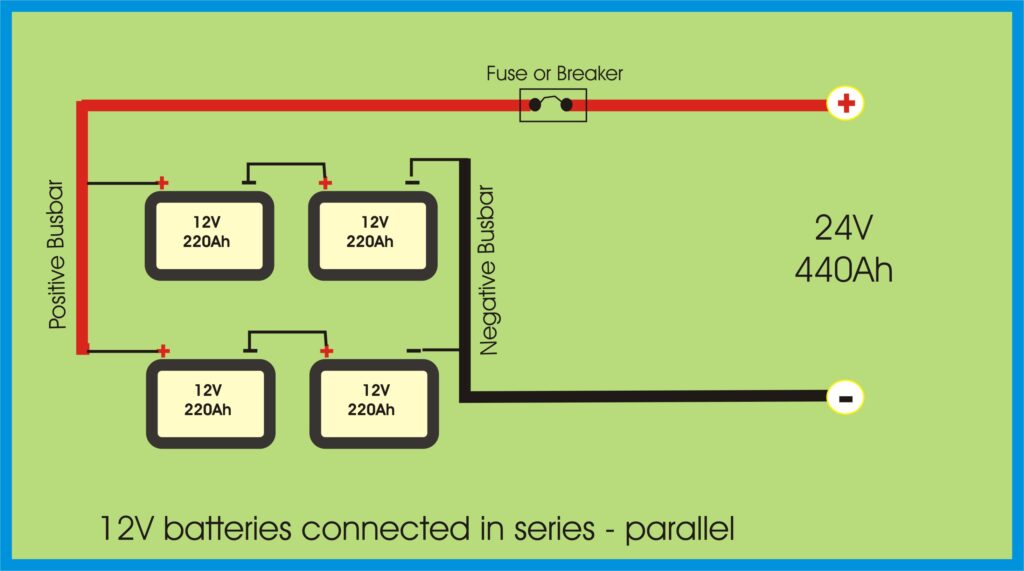

Wiring diagram:

Wiring Tip:

Use identical batteries (same brand, age, voltage, and capacity) to prevent imbalance.

⚠️ Safety Tips for Wiring Battery Banks

1. Double-check polarity. Reverse polarity can damage your equipment or cause fire.
2. Use fuses or circuit breakers between connections, especially between the bank and the inverter.
3. Ensure solid connections. Loose terminals cause resistance, heat, and voltage drop.
4. Use proper cables. Thicker cables reduce voltage drop, especially in high-current systems.
5. Don’t mix old and new batteries — it leads to uneven charging and faster wear.

🛠️ Pro tip: Use a battery balancer or BMS when wiring lithium batteries in series to ensure equal voltage across each cell.

🚫 Common Mistakes to Avoid

• ❌ Mixing different types or capacities of batteries
• ❌ Using too-thin cables for long runs
• ❌ Forgetting to fuse battery banks
• ❌ Skipping regular voltage checks
• ❌ Connecting batteries with corroded or dirty terminals

✅ Conclusion

Wiring your batteries correctly is foundational to a safe and efficient solar setup. Whether you’re going for higher voltage, more capacity, or both — understanding battery wiring gives you control over your system’s performance and lifespan.

Have questions about your setup? Drop them in the comments or send us a message — we’re here to help power your journey to energy independence! ⚡
